Prototype 4

Chenille Strip Prototype

We have been weaving photonic bandgap (PBG) fibers on a computer-controlled electronic Jacquard loom, in order to produce textile displays with dynamic appearance. In their cross section, PBG Bragg fibers feature a periodic sequence of hundreds of nano-sized layers of two distinct plastics. Under ambient illumination, the fibers appear colored due to optical interference in their microstructure.

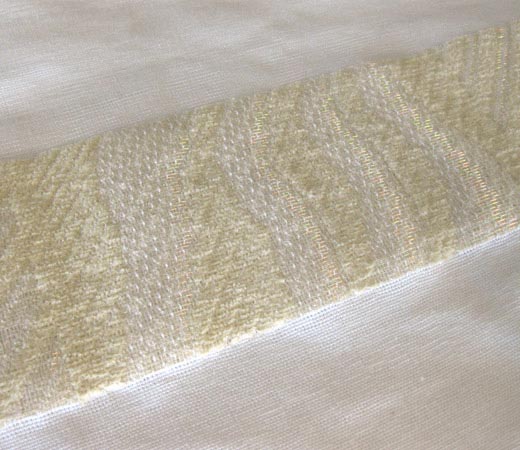

This sample is created using chenille to explore the possible uses as an upholstery or carpeting fabric. The contrast in texture and reflectance highlights the qualities of the PBG fibers.

photographs
prototype_4_1
videos
prototype_4_vid

photo · Ronald Borshan
video · XS Labs

Prototype 2

Leaf Pattern Prototype II

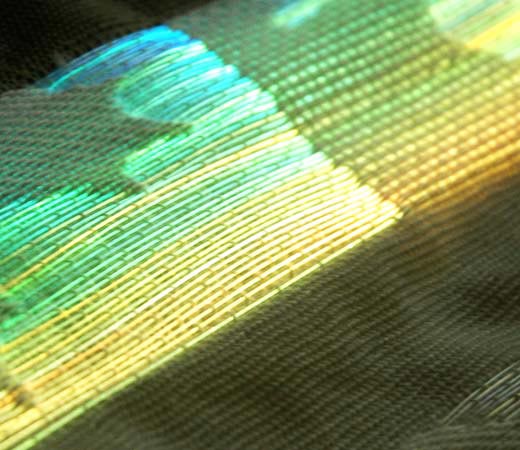

The appearance of the reflective textile can be varied dramatically by using different weave patterns, such as the ones enabled by a computerized Jacquard loom. The Jacquard loom allows the weaver to individually address each warp thread so as to create complex weave structures including double weaves.

A double weave is a type of woven cloth in which two warps and two sets of weft yarns are interwoven to form a two layered cloth. We used a white cotton warp, a white cotton weft and a PBG fiber weft to create individual illuminated designs in the textile display.

photographs
prototype_2_1 prototype_2_2 prototype_2_3 prototype_2_4 prototype_2_5 prototype_2_6 prototype_2_7 prototype_2_8 prototype_2_9 prototype_2_10 prototype_2_11
videos
prototype_2_1_vid

photos · Ronald Borshan & Joanna Berzowska

Prototype 1

Leaf Pattern Prototype I

To systematically study the reflection of PBG fiber textiles, we have prepared a Jacquard textile with a three leaf pattern, each using a variety of weft face double weave structures. We wove the pattern twice, using two different diameters of PBG fibers, 500 and 300 microns.

The first sample was woven with the thicker fibers using a double weave where the warp yarns are separated into two layers so as to bring the PBG fibers to the surface in the leaf pattern and weave them in the back layer in the area around the leaf. In the leaf, the PBG fiber is woven in a 1/7 twill structure in the front layer, while the cotton yarn was woven in a 2/2 pocket weave structure in the back layer. The two layers are connected by reversing the positions of the two layers outside the leaf pattern, but are not connected inside the leaf, which is also known as pocket cloth or pocket weave, since it creates pockets between the two layers.

photographs
prototype_1_1 prototype_1_2 prototype_1_3 prototype_1_4 prototype_1_5

photos · Ronald Borshan

Prototype 5

Silk Strip Prototype

This sample uses our most successful double weave strutures. The video shows the reflection of ambient light from a PBG fiber-based textile as a function of the angle of observation.

photographs
prototype_5_1
videos
prototype_5_1_vid

photo · Joanna Berzowska
video · XS Labs

Prototype 6

Woven Architectual Lighting Panel Prototype

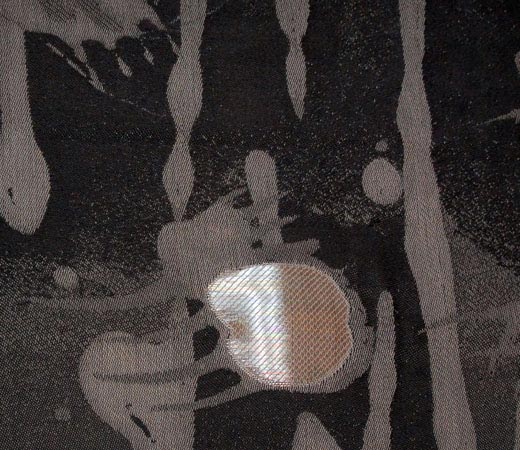

This piece is the prelude to the Light Panel. We transitionned to using a brocade structure to isolate the PBG fibers in the middle of the textile, so as to create a distinct illuminated shape in the center of the textile panel.

photographs
prototype_6_1 prototype_6_2 prototype_6_3 prototype_6_4 prototype_6_5 prototype_6_6 prototype_6_7 prototype_6_8

photos · Joanna Berzowska & Ronald Borshan

Prototype 7

Soy Sauce Drips with Lighting Strip

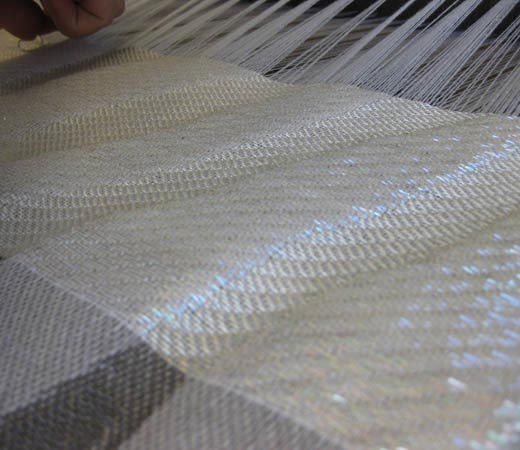

PBG fibers are highly reflective and have the appearance of colored metallic mirrors. A straight PBG fiber exposed to ambient light can "sparkle" when the incidence angle and the angle of observation are properly chosen.

The sparkling effect can be enhanced by introducing bends into the fiber. The appearance of the reflective textile can be varied dramatically by using different weave patterns, such as the ones enabled by a computerized Jacquard loom.

photographs
prototype_7_1 prototype_7_2 prototype_7_3 prototype_7_4 prototype_7_5

photos · Joanna Berzowska

Prototype 8

White Silk Dress Strips

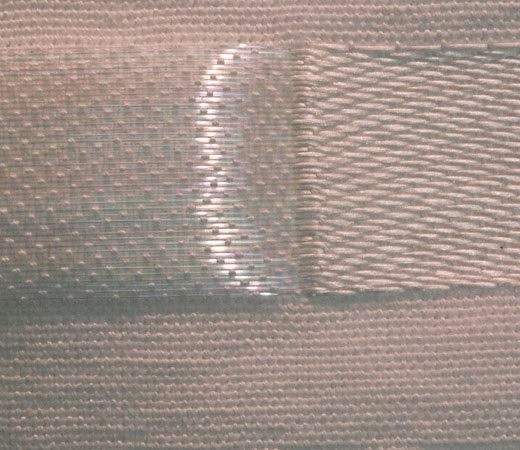

These strips were woven on the Jacquard, with a white cotton warp and two wefts: white silk and PBG fibers.

These strips were created as prototypes for the 'pleet' dress, which ultimately used woven strips with black silk and PBG fibers.

photographs
prototype_8_1 prototype_8_2 prototype_8_3 prototype_8_4 prototype_8_5 prototype_8_6 prototype_8_7 prototype_8_8 prototype_8_9 prototype_8_10
videos
prototype_8_1_vid

photos · Ronald Borshan
video · XS Labs

Prototype 9

Black Silk Dress Strips

Black cotton warp with black silk weft and PBG fibers create decorative illuminating strips to be integrated into a garment.


photographs
prototype_9_1

photo · Joanna Berzowska

Prototype 10

Hand Weaving Prototype II

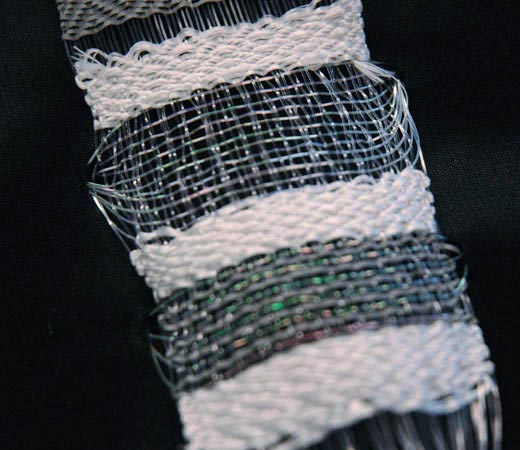

This sample is woven on our new handloom from Leclerc and tests various weave structures with the photonic fibres in the warp.

photographs
prototype_10_1 prototype_10_2 prototype_10_3

photos · Marguerite Bromley

Prototype 11

Sculptural Hand Weaving

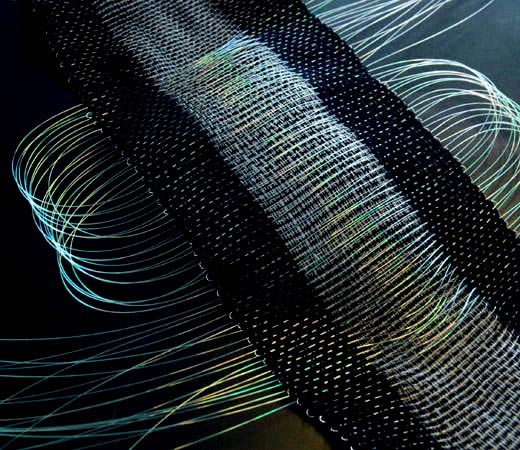

We integrated stainless steel wire into the weft, together with black cotton and continuous PBG fibres, to create a malleable 3D illuminated sculptural structure.

photographs
prototype_11_1 prototype_11_2 prototype_11_3 prototype_11_4 prototype_11_5

photos · Joanna Berzowska, Marguerite Bromley, Marc Beaulieu

Prototype 12

Sparkl Prototype I

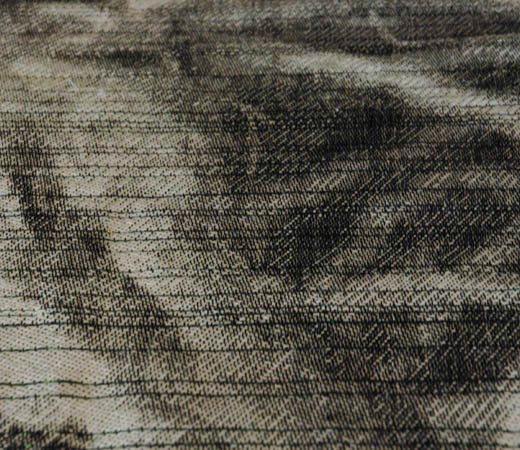

Using fiber imagery as a base, this weaving has a black cotton warp, and white linen weft threads and PBG fiber weft threats at regular irregular intervals and in varied amounts.

photographs
prototype_12_1 prototype_12_2 prototype_12_3 prototype_12_4 prototype_12_5

photos · Joanna Berzowska

Prototype 13

Sparkl Prototype II

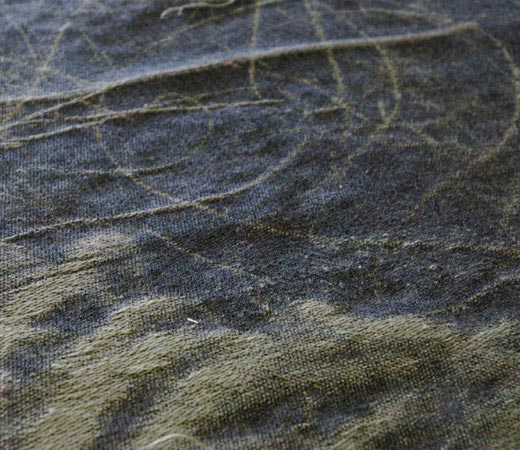

This weaving has a black cotton warp, and olive green cotton weft threads and PBG fiber weft threats at regular even intervals.

The depth inherent to the fiber imagery explored in this series, ultimately came to evoke seaside landscapes where the reflected and transmitted light collapses sea and grass, creating dynamic ripples.

photographs
prototype_13_1 prototype_13_2 prototype_13_3 prototype_13_1 prototype_13_2

photos · Joanna Berzowska

Prototype 3

Lamp Weaving

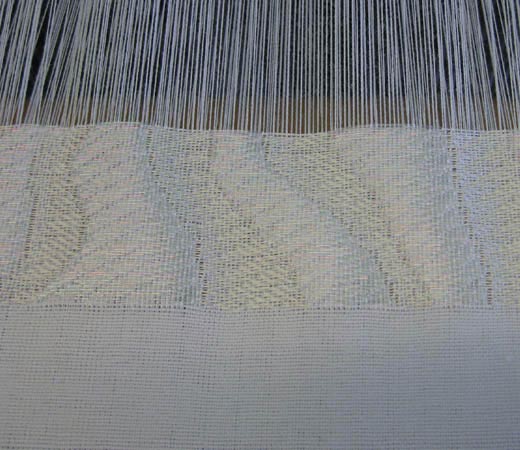

Woven pattern for a lamp. (more information and photos to come)
